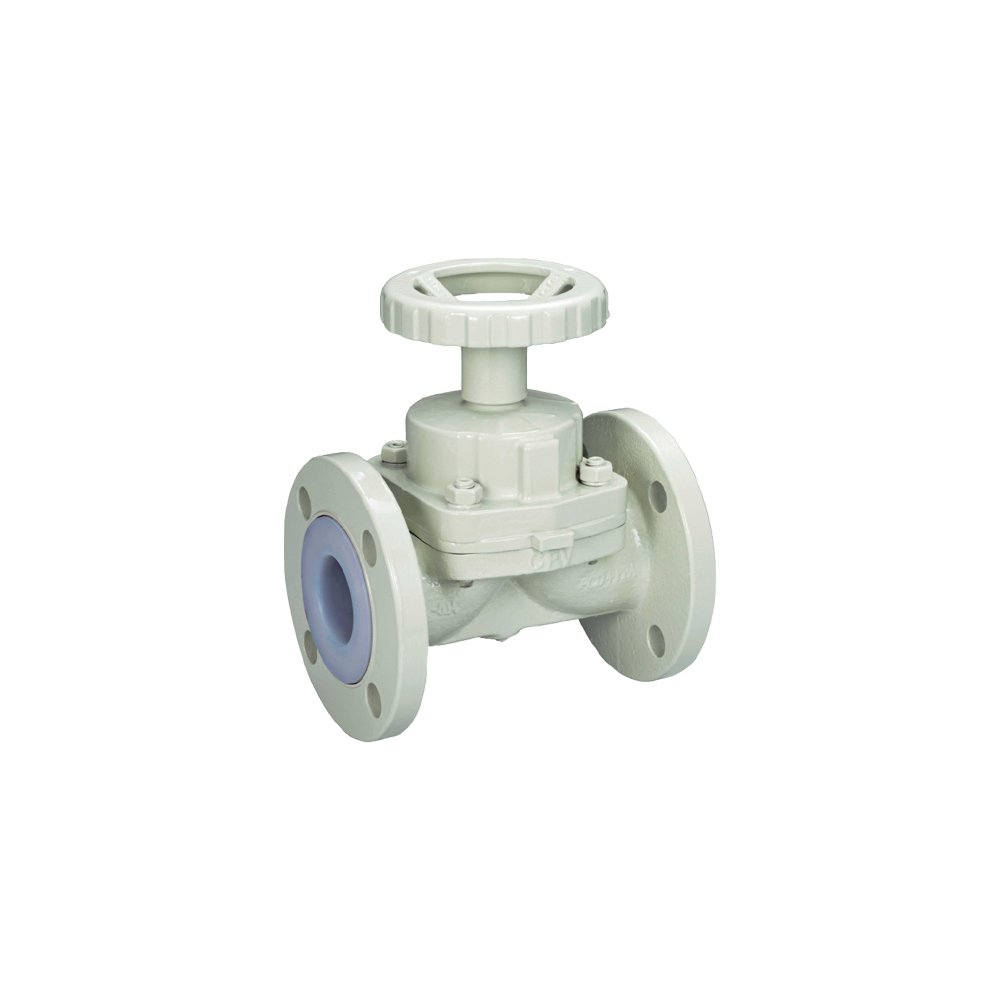

PTFE/PFA Lined Diaphragm Valve is specifically designed to handle highly corrosive and high-purity media. With a full PTFE or PFA lining, the valve ensures maximum chemical resistance while maintaining clean, contamination-free operation.
Its weir-type diaphragm design provides tight shut-off, smooth flow regulation, and bubble-tight sealing, even under demanding process conditions. The valve construction eliminates dead spaces, minimizing the risk of product buildup and ensuring process integrity.
Key Features & Benefits:
-
Full PTFE/PFA Lining – excellent resistance to aggressive chemicals and solvents.
-
Hygienic Flow Path – ideal for ultra-pure and contamination-sensitive applications.
-
Reliable Shut-Off – diaphragm design ensures leak-free performance.
-
Easy Maintenance – minimal moving parts, simple replacement of diaphragms.
-
Versatile Use – suitable for both on/off service and flow regulation.
Typical Applications:
-
Chemical processing plants
-
Acid & solvent distribution systems
-
Pharmaceutical manufacturing
-
Semiconductor & ultra-pure water facilities
-
Food & beverage industries requiring contamination control

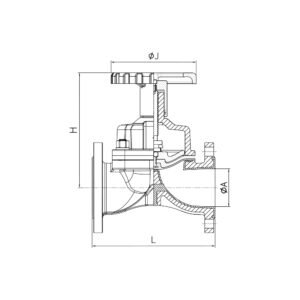

Dimension – JIK 10K
| DN | ⌀ A | H | ⌀ J | L |
|---|---|---|---|---|
| 15 | 15 | 100 | 100 | 114 |
| 20 | 19 | 103 | 100 | 123 |
| 25 | 25 | 108 | 100 | 133 |
| 40 | 40 | 153 | 120 | 165 |
| 50 | 48 | 168 | 120 | 196 |
| 65 | 65 | 226 | 180 | 222 |
| 80 | 80 | 237 | 180 | 260 |
| 100 | 100 | 320 | 230 | 313 |
